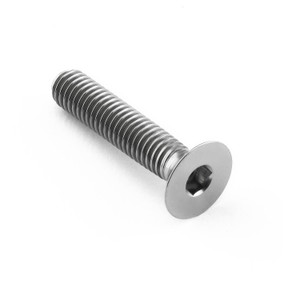

Titanium Countersunk Bolt M6x(1.00mm)x30mm (TICS630)

Titanium Countersunk Bolt

This is the only style of bolt where the head is included in the length measurement, as it sits below the surface, the head contributes to the overall length.

Made from 6AL-4V (Grade 5) Titanium and machined with rolled threads, this bolt is not only strong and lightweight but also offers great corrosion resistance.

Sold here individually.

Black Titanium

The beautiful, long lasting black finish results from an application of Diamond Like Coating (DLC) this gives supreme hardness and corrosion resistance provided by a nano composite coating. This coating increases the fastener lifetime and helps to prevent galling.

DLC coatings increase the component lifetime dramatically. By incorporating them right from the beginning, the overall system cost can be held level or may even be reduced.

Also available in Blue, Gold and Purple Haze Anodized Titanium. Please note that our Colored Titanium is not identical to our Aluminum range.

Material:

Titanium Grade 5

Product Type:

Bolt

Head Style:

Countersunk

Thread Diameter:

6mm

Thread Pitch:

1.00mm

Thread Length:

28mm

Head Height:

3.75mm

Head Diameter:

12mm

Length:

30mm

Allen Key Size:

4mm

DIN Standard:

DIN 7991

Product Weight:

3.49g

Pack Quantity:

1

Pre-Drilled:

No
